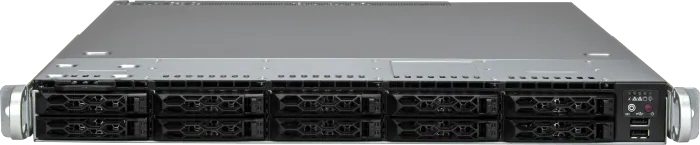

| Form Factor | 1U Rackmount
Enclosure: 437 x 43 x 597mm (17.2" x 1.7" x 23.5")
Package: 605 x 197 x 822mm (23.8" x 7.8" x 32.4") |

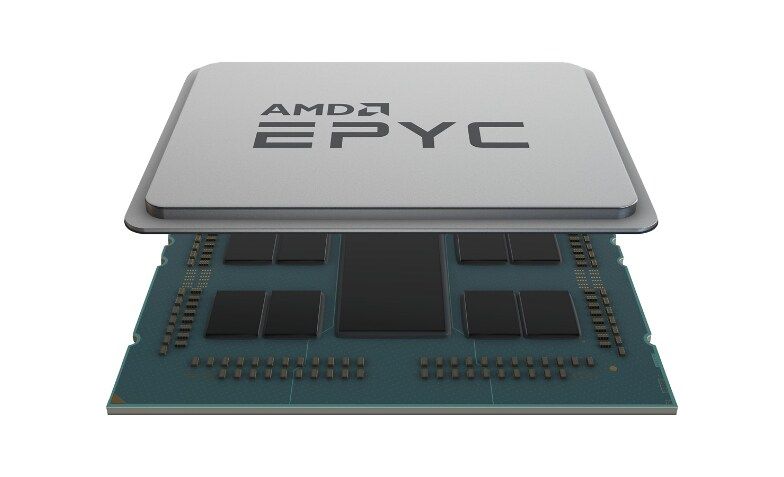

| Processor | Single processor(s) AMD EPYC™ 9004/9005 Series Processors (* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Up to 160C/320T |
| GPU | Max GPU Count: Up to 2 single-width GPUs
Supported GPU: NVIDIA PCIe: L4, A2
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect: PCIe |
| System Memory | Slot Count: 12 DIMM slots
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Max Memory (1DPC): Up to 4.5TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) |
| Drive Bays | Default: Total 10 bays
10 front hot-swap 2.5" SATA drive bays
Option A: Total 10 bays
10 front hot-swap 2.5" PCIe 5.0 NVMe* drive bays
Option B: Total 10 bays
10 front hot-swap 2.5" SAS* drive bays
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2: 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110) |
| Expansion Slots | Default: 2 PCIe 5.0 x16 FHHL slots
2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) |
| On-Board Devices | Chipset: System on Chip
Network Connectivity: Via AIOM |
| Input / Output | LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 2 USB 3.0 ports (rear), 2 USB 2.0 ports (front)
Video: 1 VGA port
Serial: 1 COM port (Rear)
TPM: 1 TPM header |
| System Cooling | Fans: 6x 4cm heavy duty fans with optimal fan speed control
Air Shroud: 1 Air Shroud |
| Power Supply | 2x 860W Redundant Platinum Level (94%) power supplies |
| System BIOS | BIOS Type: AMI 32MB SPI Flash ROM
BIOS Features: ACPI 6.4, Plug and Play (PnP), SMBIOS 3.5 or later, UEFI 2.8, USB Keyboard support |
