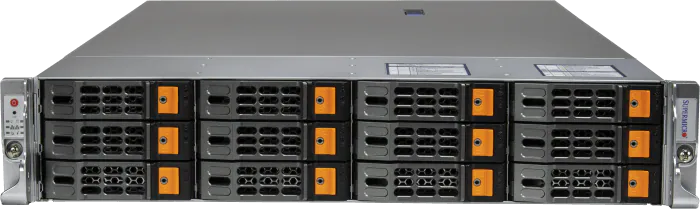

| Form Factor | 2U Enclosure: 437 x 88.9 x 803mm (17.2" x 3.5" x 31.6")
Package: 605 x 263 x 1107mm (23.8" x 10.4" x 43.6") |
| Processor | Dual processor(s) AMD EPYC™ 9004/9005 Series Processors (* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Up to 320C/640T |
| GPU | Max GPU Count: Up to 2 double-width or 2 single-width GPUs
Supported GPU: NVIDIA PCIe: H100, H100 NVL, A16, A30, A40, L4, L40S, RTX 4000, RTX 6000 Ada Generation, A100, RTX A4000, RTX A4500, RTX A5000, RTX A6000, T1000, RTX A5500, L40, RTX A2000
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect: PCIe |
| System Memory | Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Max Memory (1DPC): Up to 9TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) |
| Drive Bays Configuration | Default: Total 12 bays
12 front hot-swap 3.5"/2.5" NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables)
M.2: 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110) |
| Expansion Slots | Default: 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option A*: 1 PCIe 5.0 x16 (in x16) FHFL double-width slot
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option B*: 2 PCIe 5.0 x8 (in x16) FHFL slots
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option C*: 2 PCIe 5.0 x16 (in x16) FHFL double-width slots
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option D*: 1 PCIe 5.0 x16 (in x16) FHFL double-width slot
2 PCIe 5.0 x8 (in x16) FHFL slots
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option E*: 4 PCIe 5.0 x8 (in x16) FHFL slots
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option F*: 4 PCIe 5.0 x16 (in x16) FHFL double-width slots
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option G*: 3 PCIe 5.0 x16 (in x16) FHFL double-width slots
2 PCIe 5.0 x8 (in x16) FHFL slots
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option H*: 2 PCIe 5.0 x16 (in x16) FHFL double-width slots
4 PCIe 5.0 x8 (in x16) FHFL slots
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option I*: 1 PCIe 5.0 x16 (in x16) FHFL double-width slot
6 PCIe 5.0 x8 (in x16) FHFL slots
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| On-Board Devices | Chipset: System on Chip
Network Connectivity: Via AIOM |
| Input / Output | LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 2 USB 3.0 ports(rear)
Video: 1 VGA port |
|
