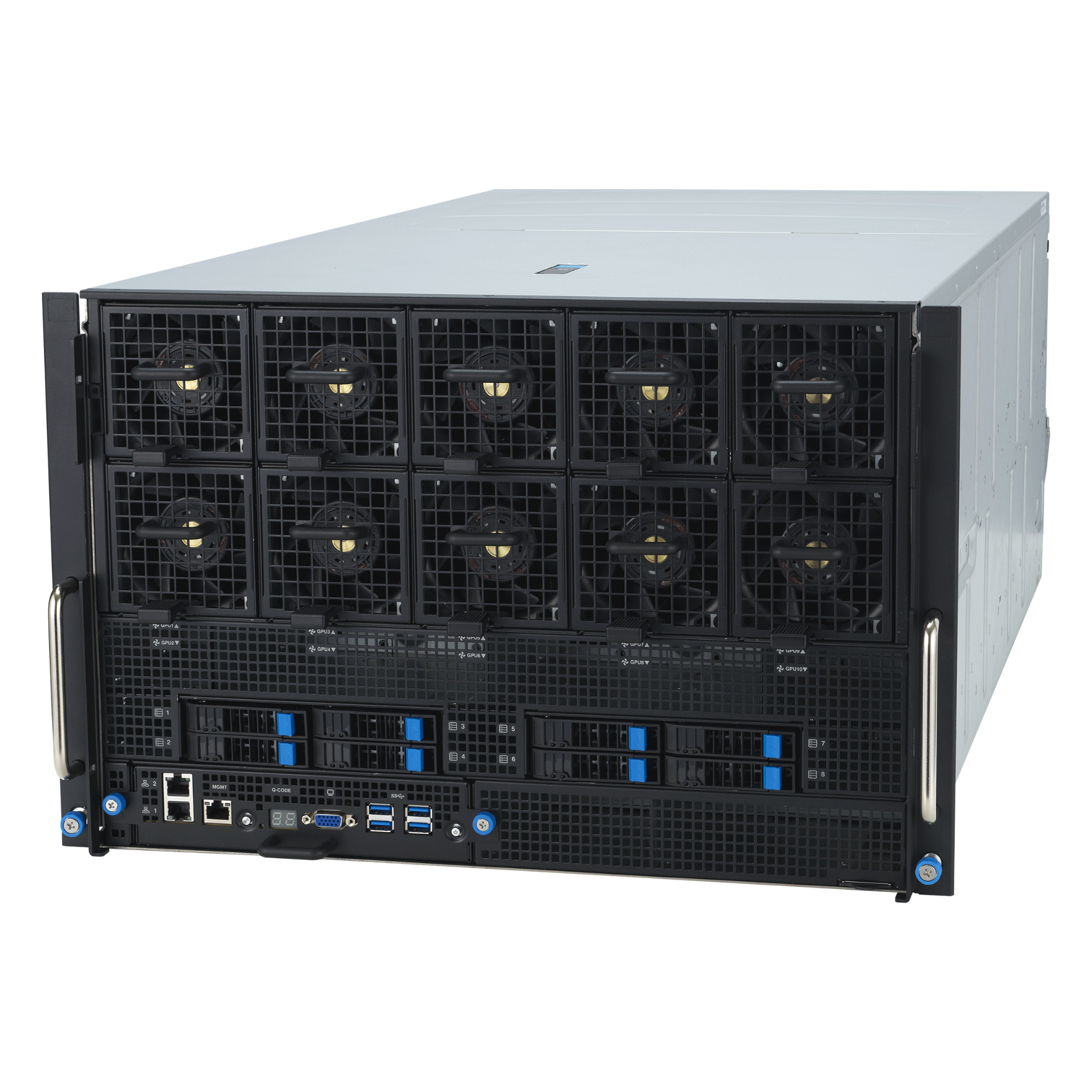

ESC A8A-E12U

AMD Instinct MI325X
• Premium AI training and inferencing
• 2 x AMD EPYC 9005 Processors
• 24 x DDR5 DIMM slots
• 8 x AMD MI325X GPUs (8 x 1000W)
• 5+1 Redundant PSU
• Easy maintainable 7U Chassis
• Air cooling optimized

  • Fueled by dual AMD EPYC™ 9005 processors, featuring the 9575F CPU with high-frequency optimization tailored for AI workload and 400W TDP support. Its high vCPU density and x86 architecture ensure seamless integration with existing infrastructure.



  • Improved performance with the AMD Instinct MI325X series eight-GPU platform, featuring GPU Direct Storage to significantly reduce read and write latency.



  • A dedicated one-GPU-to-one-NIC topology that supports up to eight NICs for the highest throughput, delivering 896GB/s bandwidth during compute-intensive workloads.



  • Increased HBM3E memory capacity of 256GB and bandwidth of 6TB/s per GPU optimize performance for large AI models and HPC workloads.



  • Modular design with reduced cable usage to shorten assembly time and improve thermal optimization.
Processor / System Bus2 x AMD EPYC™ 9005/9004 Series Processors (Up to TDP 400W)
MemoryTotal Slots: 24x DDR5 DIMM slots, up to 6400MHz (1DPC) (12-channel per CPU, 12 DIMM per CPU)
Capacity: Maximum up to 3TB
Memory Type: DDR5 6400/5600 RDIMM 128GB, 96GB, 64GB
*Refer to Asus server AVL for the latest update
Expansion SlotsUp to 11 PCIe slots
[89104 PCIe Switch directly]
- 8 x PCIe Gen5 x16 (LP, HL) – GPU group
[89048 PCIe Switch directly]
- 1 x PCIe Gen5 x16 (FH, HL) – CPU 1 extension
- 1x PCIe Gen5 x8 (FH, HL) – CPU 1 extension
[CPU directly]
- 1 x PCIe Gen5x16 (FH, HL) (CPU2)
Drive Bays10 x 2.5” hot-swap bays
8 x NVMe + 2 x NVMe/SATA*/SAS*
*HBA/ RAID card is required to support SAS hard drives
Networking2 x 10 Gigabit LAN ports (Intel X710-AT2 Controller)
1 x Management Port
Multi-GPU SupportPlease find the latest GPU support from ASUS Support
Front I/O Ports4 x USB3.2 Gen1 ports
1 x VGA port
2 x 10Gb RJ45 LAN module (Intel-x710 Based)
1 x Mgmt LAN
1 x locate button
1 x power button
Rear I/O Ports1 x locate button
1 x power button
Switch/LEDFront:
1 x Power Button/LED
1 x Location Button/LED
1 x Message LED
1 x Q-Code/Port 80 LED
Rear:
1 x Location LED
1 x Power Button/LED
OS SupportPlease find the latest OS support from ASUS Support
Management SolutionASUS Control Center
ASUS ASMB11-iKVM (on-board)
Regulatory ComplianceBSMI, CB, CE, FCC
Dimensions885mm x 447mm x 306.65mm
Form Factor7U
WeightNet Weight: 108 Kg.
Gross Weight: 142.4 Kg.
Power Supply5+1 Redundant 80 PLUS 3000W Titanium PSU
EnvironmentOperation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% (Non condensing)
