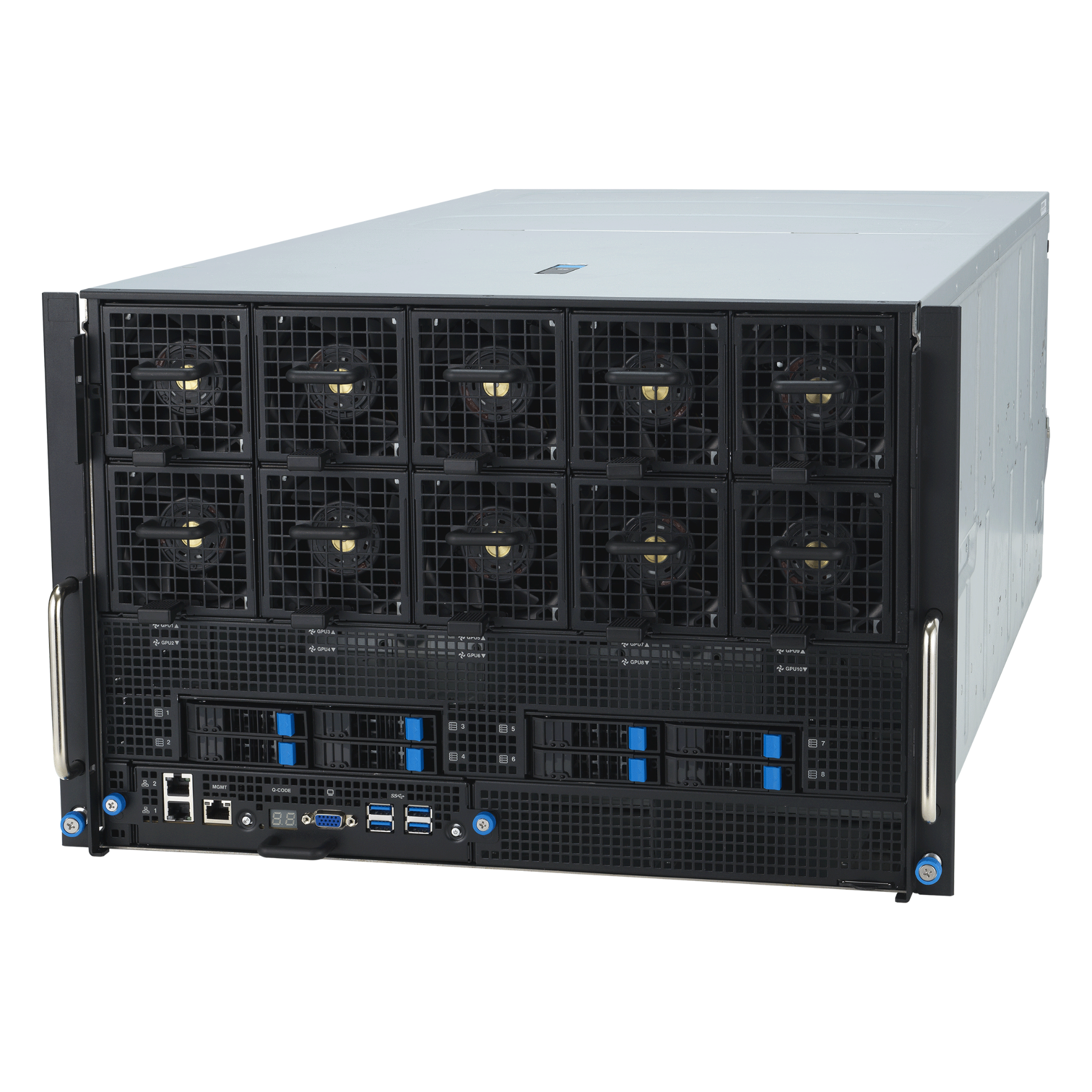

ESC N8-E11V

NVIDIA HGX H200 NVL8
• Highest compute performance & AI
• 2 x Intel 5th Gen Xeon SP Processors
• 32 x DDR5 DIMM slots
• 8 x NVIDIA HGX H200 GPUs (8 x 700W)
• 4+2 Redundant PSU
• Easy maintainable 7U chassis
• Air cooling optimized
• Shipping

Features Specifications

- Fueled by dual 5^th Gen Intel^® Xeon^® Scalable processors, supporting 350W TDP
- Direct GPU-to-GPU interconnect via NVLink delivers 900GB/s bandwidth for efficient scaling
- A dedicated one-GPU-to-one-NIC topology: Supports up to 8 NICs for the highest throughput during compute-intensive workloads
- Modular design with reduced cable usage: Shorten assembly time and improve thermal optimization
- Advanced NVIDIA technologies: The full power of NVIDIA GPUs, BlueField-3, NVLink, NVSwitch, and networking
- High level of power efficiency: 4+2 80 PLUS Titanium power supplies
- Optimized thermal design: Supports direct-to-chip (D2C) cooling solution and features dedicated CPU and GPU airflow tunnels for efficient heat dissipation
- Designed for generative AI with optimized server systems, data-center infrastructure, and AI software-development capabilities integrated by ASUS

Processor / System Bus	2 x Socket 4th Intel® Xeon® Processor Scalable Family (Up to 350W) 5th Intel® Xeon® Processor Scalable Family (Up to 350W)
Memory	Total Slots: 32 (8 channel per CPU, 16 DIMM per CPU) Capacity: Maximum up to 4TB per CPU socket Memory Type: 4th: DDR5 5600 RDIMM/3DS RDIMM (2DPC) 5th: DDR5 5600 RDIMM/3DS RDIMM (2DPC) Memory Size: 64GB, 32GB, 16GB RDIMM 256GB, 128GB RDIMM 3DS * Refer to support page for more information
Expansion Slots	ESC N8-E11 H100 SKU: 12 x PCIe Gen5 slots [PCIe Switch directly] 8 x PCIe Gen5 x16 link (LP, HL) [CPU directly] 1 x PCIe Gen5 x16 link (FH, HL)* + 1 x PCIe Gen5 x16 link (FH, HL)* *Support PCIe x16 link for DPU
Storage	Optional Kits: - Broadcom MegaRAID 9560-16i - Broadcom MegaRAID 9540-8i
Drive Bays	10 x 2.5” hot-swap drive bays (8 NVMe, 2 NVMe/SATA/SAS) H100 SKU:* 2 x M.2 Gen5 x4 link (CPU1) / 2 x M.2 Gen3 x2 link (PCH) H200 SKU: 2 x M.2 Gen3 x2 link (PCH)
Networking	2 x 10 Gigabit LAN ports (Intel X710-AT2 Controller) 1 x Management Port
Front I/O Ports	4 x USB3.2 Gen1 ports 1 x VGA port 2 x 10Gb RJ45 LAN module (Intel-x710 Based) 1 x Mgmt LAN 1 x locate button 1 x power button
Rear I/O Ports	1 x locate button 1 x power button
Switch/LED	Front: 1 x Power Button/LED, 1 x Location Button/LED, 1 x Message LED, 1 x Q-Code/Port 80 LED Rear: 1 x Location LED, 1 x Power Button/LED
OS Support	Please find the latest OS support from ASUS Support
Management Solution	ASUS Control Center ASUS ASMB11-iKVM (on-board)
Regulatory Compliance	BSMI, CB, CE, FCC, KCC
Dimensions	885mm x 447mm x 306.65mm
Form Factor	7U
Weight	Net Weight: 99kg (excluding CPU, DRAM, and HDD) Gross Weight: 154kg (including packaging, excluding CPU, DRAM, and HDD)
Power Supply	4+2 Redundant 3000W 80 PLUS Titanium Power Supply
Environment	Operation temperature: 10℃ ~ 35℃ Non-operation temperature: -40℃ ~ 70℃ Non-operation humidity: 20% ~ 90% (Non-condensing)

Call for pricing
