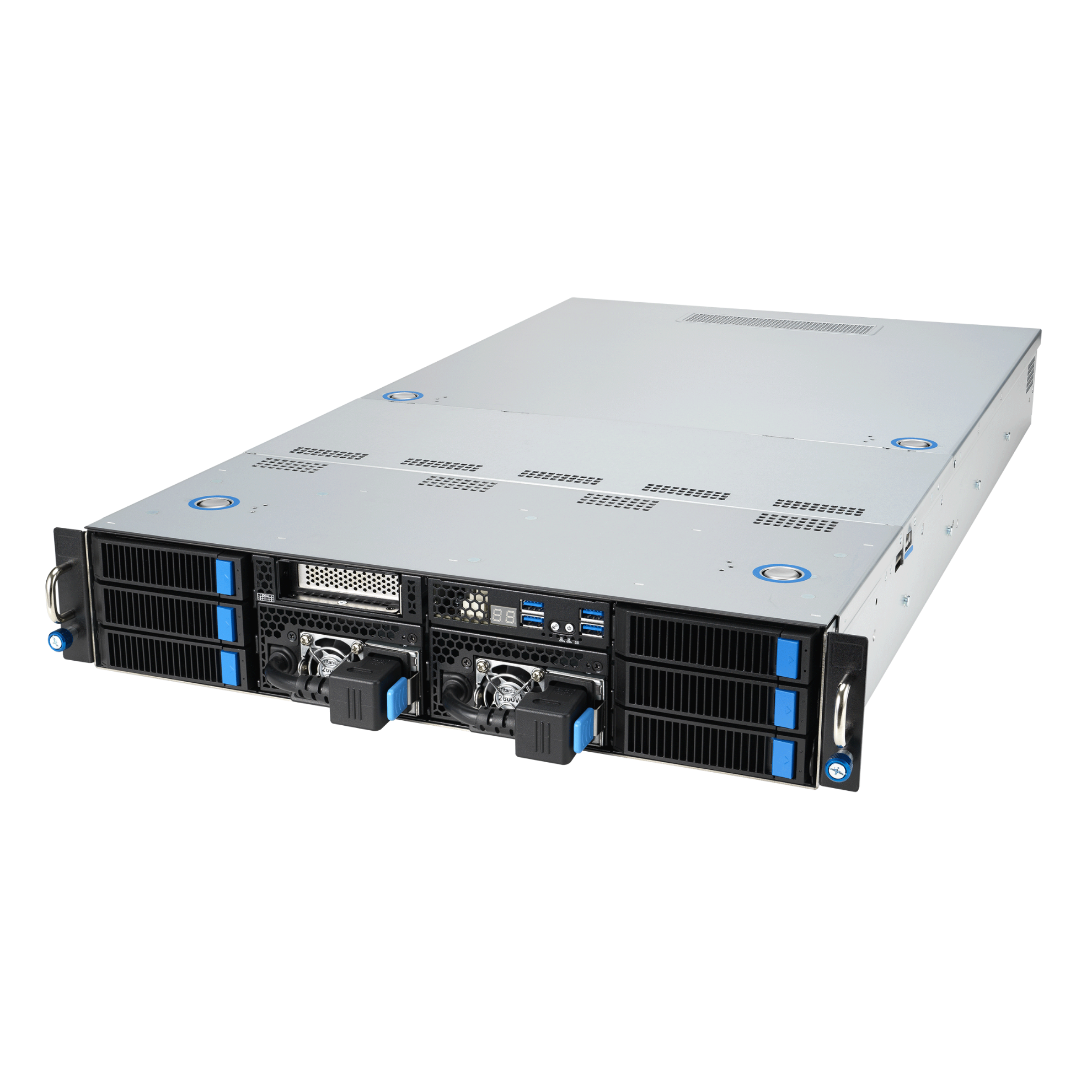

NTS Elite APEX 2U AMD EPYC 4-GPU Accelerator Server for AI & HPC

AMD EPYC 9004/9005 single-processor 2U GPU server that supports four dual-slot GPUs, liquid cooling solution, up to 12 DIMM, 8 PCIe 5.0 slots, six NVMe, OCP 3.0 and ASMB11-iKVM

Key Features

Powerful performance: Powered by AMD EPYC 9004 processors with 128 Zen 4c cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts per socket
AI and HPC workloads ready: Up to four dual-slot active or passive GPUs, NVIDIA NVLink® bridge, and NVIDIA Bluefield DPU support to enable performance scaling
Power-efficient system design: Independent CPU and GPU airflow tunnels for thermal optimization and support for up to two 2600W Titanium redundant power supplies for uninterrupted operation
Comprehensive cooling solutions: Designed for both liquid cooling and enhanced air cooling based on CPU TDP for versatile workloads
Scale-up storage and expansion design: A total of six bays in combination of Tri-Mode NVMe/SATA/SAS drives on the front panel and eight PCIe 5.0 slots for higher bandwidth and system upgrade
Flexible networking module design: Optional OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution

Configure & Buy Specifications

Processor Support	1 x Socket SP5 (LGA 6096) AMD EPYC 9004 /9005 series (up to 400W) 4th Generation AMD EPYC Processors with AMD 3D V-Cache technology
Memory	12 (12-channel per CPU, 12 DIMM per CPU) Capacity Maximum up to 3TB per CPU socket Memory Type DDR5 4800/4400 RDIMM/ 3DS RDIMM Memory Size 64GB, 32GB, 16GB RDIMM 256GB, 128GB 3DS RDIMM
Expansion Slots	12 -Total PCI/PCI-X/PCI-E/PIKE Slots -4 x PCIe x16 slots (Gen5 x16 link, FH, FL) for dual-slot GPU cards or 8 x PCIe x16 slots (Gen5 x8 link, FH,FL) for single-slot GPU cards -1 x PCIe x16 slots (Gen5 x16 link, FH, HL) -1 x PCIe x16 slot (Gen5 x16/x8 link, FH, HL) or OCP socket option -1 x PCIe x8 slot (Gen5 x0/x8 link, LP, HL) Front: 1 x PCIe x8 slot (Gen5 x8 link, LP, HL) Only for SKU1
SATA Controller	6 x SATA 6Gb/s ports Optional kits: ASUS PIKE II 3008 8-port SAS 12Gb/s HBA card ASUS PIKE II 3108 8-port SAS HW 12Gb/s RAID card Broadcom MegaRAID 9540-8i Broadcom MegaRAID 9560-16i
Storage Bays	2 x 2.5” & 4 x 3.5“ Hot-swap Storage Bays SKU1: 2 x 2.5” SATA/SAS/NVMe + 2 x 3.5” SATA/SAS/NVMe + 2 x 3.5” SATA/SAS* SKU2: Build to order 2 x 2.5” SATA/SAS/NVMe + 4 x 3.5” SATA/SAS/NVMe (Occupy 1 x PCIe x8 link ) SAS support required a HBA/RAID card. *For SKU1 additional 2 x NVMe support required a RAID card
Networking	2 x Gigabit LAN ports (Intel I350 Controller) 1 x Management Port
Graphic	Aspeed AST2600 64MB
Front I/O Ports	4 x USB 3.2 Gen1 ports
Rear I/O Ports	2 x USB 3.2 Gen1 ports 2 x Gigabit LAN ports (RJ45) 1 x MAnagement port (RJ45) 1 x VGA port
Switch/LED	Front : 1 x Power Button/LED 1 x Location Button/LED 1 x Message LED 1 x Q-Code/Port 80 LED 2 x LAN LED Rear : 1 x Power Button/LED 1 x Location LED 1 x Message LED
OS Support	Windows Server RedHat® Enterprise Linux SuSE® Linux Enterprise Server CentOS Ubuntu Vmware
Management Solution	On-Board ASMB11-iKVM
Dimension	800mm x 439.5mm x 88.9mm (2U) 845.45mm x 439.5mm x 88.9mm (2U) for immersion cooling
Environment	Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing)

Barebone

2U - AMD EPYC 9004 - 4xGPUs - 2x 2.5 SATA/SAS/NVMe 4x 3.5 SATA/SAS - 12x DDR5 - 2600W 1+1 Redundant

Processor

Memory

16GB PC5-38400 4800 MHz DDR5 [+$1,656.00]
32GB PC5-38400 4800 MHz DDR5 [+$2,592.00]
64GB PC5-38400 4800 MHz DDR5 [+$4,692.00]
128GB PC5-38400 4800 MHz DDR5 [+$17,424.00]

HARD DRIVE

(Max Quantity: 2)

GPU

(Max Quantity: 8)

GPU Bridge

(Max Quantity: 4)

AMD Instinct MI210 Bridge Connector Attaches 2x Instinct MI210 Cards [+$249.00]
AMD Instinct MI210 Bridge Connector Attaches 4x Instinct MI210 Cards [+$249.00]
NVIDIA® NVLink™ Bridge - 2-Way 2-Slot Spacing - A100 and H100 NVL 600GB [+$249.00]
NVIDIA® NVLink™ Bridge - 2-Slot Spacing - RTX A4500/A5000/A5500/A6000 100GB [+$249.00]
NVIDIA® NVLink™ Bridge - 2-Slot Spacing - A30 and A40 600GB [+$249.00]

CONTROLLER CARD

Broadcom HBA 9500-8i SAS3/SATA 8-Port Tri-Mode Host Bus Adapter - PCIe 4.0 x8 NA PCIe 4.0 x8 [+$373.59]
Broadcom MegaRAID 9540-8i SAS3/SATA 8-Port RAID Controller - PCIe 4.0 x8 NA PCIe 4.0 x8 [+$395.58]
Broadcom MegaRAID 9560-8i SAS3/SATA 8-Port RAID Controller - 4GB Cache 4GB Cache PCIe 4.0 x8 [+$822.68]
Broadcom MegaRAID 9580-8i8e SAS3/SATA 8+8-Port RAID Controller - 8GB Cache 8GB Cache PCIe 4.0 x8 [+$965.44]

Battery Backup

05-50039-00 CacheVault Flash Cache Protection Module for 9460/9480/9560/9580 Series (CVPM05) (with bracket) [+$289.00]

NETWORK ADAPTER

(Max Quantity: 2)

Trusted Platform Module

Trusted Platform Module (TPM-SPI) Nuvoton NPCT750 TCG v2.0 [+$23.92]

OPERATING SYSTEM

NTS AI Stack See what's inside each NTS AI package

No NTS AI Stack
NTS AI Stack - LaunchPad
NTS AI Stack - FlexBox
NTS AI Stack - ForgeKit
Other Software Requests - If you require specific software such as AMBER, RELION for cryo-EM, Schrödinger, NVIDIA AI Enterprise, or any other specialized tools, please include your request in the notes section. Our engineering team will assist with optimization and provide a tailored quote.
Please provide details:

Software

NVIDIA Software

Warranty

3 Year Depot Warranty (Return for Repair)
3 Year Advanced Parts Replacement Warranty [+$50.00]
3 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$450.00]
4 Year Advanced Parts Replacement Warranty [+$250.00]
4 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$770.00]
5 Year Advanced Parts Replacement Warranty [+$563.00]
5 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$1,203.00]

$0.00
