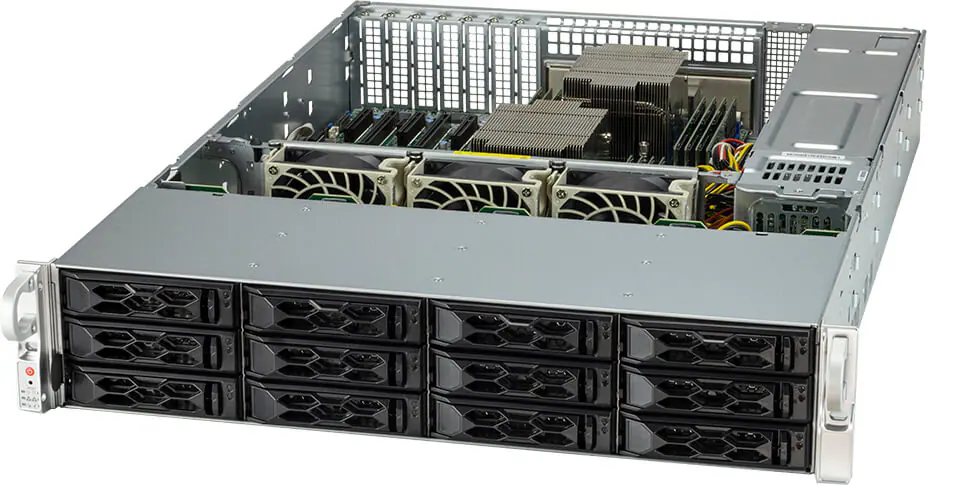

Mainstream A+ Server R2I-566265

2U Mainstream with dual AMD® EPYC™ and 6 PCIe 4.0 slots

• Virtualization	• Application and data serving
• Enterprise Server	• Model analysis
• Data Center Optimized	• Compute Intensive Applications

Single AMD EPYC™ 7002/7003 Series Processor
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz
RDIMM/LRDIMM
5 PCIe 4.0 x16 LP slots + 2 PCIe 4.0 x8 LP slots
12 Hot-swap 3.5" SATA3 drive bays,
2 rear Hot-swap 2.5" SATA3 Drive bays via optional kit
M.2 Interface: 2 PCIe 4.0 x4
M.2 Form Factor: 2242, 2260, 2280, 22110
M.2 Key: M-key

Main Specifications
Device Type	Hyper SuperServer
Built-in Devices	Super X13DEM
Form Factor	1U Rackmount - CSE-HS119-R1K24P2
Dimensions (WxDxH)	Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 29.4" (747 mm)
Weight	Gross Weight: 49 lbs (22.2 kg) - Net Weight: 34 lbs (15.4 kg)
GPU
Max GPU Count	Up to 1 double-width or 3 single-width GPUs
Supported GPU	NVIDIA PCIe: H100 NVL, H100, RTX A5000, RTX A4000, L40S, L4
Processor
Processor Installed	2x Intel Xeon 6548Y+ Processor With 32-Core/64 Thread (2.5GHz)
System Memory
Memory Installed	16x 32GB DDR5-5600
Drive Bays
Hard Drive Installed	2x 960GB M.2 NVMe Solid-state Drive (SSD), 2x 3.8TB U.2 NVMe Solid-state Drive (SSD)
On-Board Devices
Network Connectivity	Dual 10GbE RJ45 (Installed)
SATA/SAS	SATA (6Gbps), RAID 0/1/5/10 support
NVMe	NVMe, RAID 0/1/5/10 support (Intel VROC RAID key required)
Chipset	Intel C741
Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port(s)
USB(s)	2 USB 2.0 ports (rear), 1 USB 3.0 port (front)
Video Output	1 VGA port
System BIOS
BIOS Type	AMI 64MB SPI Flash
Power
AC Input Voltage	100V to 240V AC
Power Supply Installed	2x 1.2kW Power Supply
Environment
Operating Temperature	5°C to 40°C
Relative Humidity	10% to 90% (non-condensing)
Storage Temperature	-40°C to 60°C

Barebone

Processor

Memory

M.2 DRIVE

480GB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$145.56]
960GB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$218.64]
1.92TB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (110mm) PCIe 4.0 x4 NVMe [+$372.21]
3.84TB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (110mm) PCIe 4.0 x4 NVMe [+$687.69]
400GB Micron 7450 MAX Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$167.24]
800GB Micron 7450 MAX Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$251.28]
960GB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$299.00]
1.92TB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$465.00]
3.84TB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$849.00]

HARD DRIVE

(Max Quantity: 12)

U.2/U.3 NVMe Drive

(Max Quantity: 4)

CONTROLLER CARD

Broadcom HBA 9500-8i SAS3/SATA 8-Port Tri-Mode Host Bus Adapter - PCIe 4.0 x8 NA PCIe 4.0 x8 [+$373.59]
Broadcom MegaRAID 9540-8i SAS3/SATA 8-Port RAID Controller - PCIe 4.0 x8 NA PCIe 4.0 x8 [+$395.58]
Broadcom MegaRAID 9560-8i SAS3/SATA 8-Port RAID Controller - 4GB Cache 4GB Cache PCIe 4.0 x8 [+$822.68]
Broadcom MegaRAID 9580-8i8e SAS3/SATA 8+8-Port RAID Controller - 8GB Cache 8GB Cache PCIe 4.0 x8 [+$965.44]

Battery Backup

05-50039-00 CacheVault Flash Cache Protection Module for 9460/9480/9560/9580 Series (CVPM05) (with bracket) [+$289.00]

NETWORK ADAPTER

(Max Quantity: 6)

Trusted Platform Module

Supermicro AOM-TPM-9665V - Trusted Platform Module - TPM 2.0 - X10 X9 MBs - not Provisioned - Vertical [+$28.81]

Power Cables

C13 to NEMA 5-15P3ft AC Power Cord (North America), C13, NEMA 5-15P, 3 ft. [+$9.08]
C13 to NEMA 5-15P6ft AC Power Cord (North America), C13, NEMA 5-15P, 6 ft. [+$9.96]
C13 to NEMA 5-15P10ft AC Power Cord (North America), C13, NEMA 5-15P, 10 ft. [+$12.25]
C13 to C14-1ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 1ft / 0.3M (TAA Compliant) [+$4.79]
C13 to C14-2ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 2ft / 0.6M (TAA Compliant) [+$4.79]
C13 to C14-3ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 3ft / 0.9M (TAA Compliant) [+$4.52]
C13 to C14-4ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 4ft / 1.2M (TAA Compliant) [+$5.58]
C13 to C14-6ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 6ft / 1.8M (TAA Compliant) [+$12.19]

SERVER MANAGEMENT

OPERATING SYSTEM

Software

Warranty

$0.00
