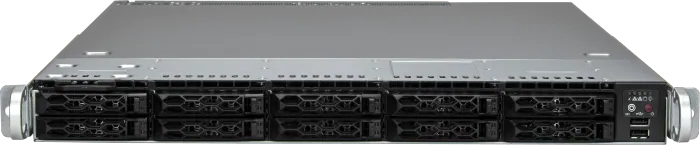

| Form Factor | 1U Rackmount Enclosure: 437 x 43 x 597mm (17.2" x 1.7" x 23.5")
Package: 605 x 197 x 822mm (23.8" x 7.8" x 32.4") |
| Processor | Single Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Up to 64C/128T
Up to 320MB Cache |
| GPU | Max GPU Count: Up to 2 single-width GPUs
Supported GPU: NVIDIA PCIe: T1000, L4, A2
CPU-GPU Interconnect: PCIe 5.0 x16 |
| System Memory | Slot Count: 16 DIMM slots/8 Channels
Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM |
| Drive Bays Configuration | Default: Total 10 bays
10 front hot-swap 2.5" SAS*/SATA drive bays
Option A: Total 10 bays
6 front hot-swap 2.5" SAS*/SATA drive bays
4 front hot-swap 2.5" PCIe 5.0 x4 NVMe*/SAS*/SATA drive bays
Option B: Total 10 bays
10 front hot-swap 2.5" PCIe 5.0 x4 NVMe*/SAS*/SATA drive bays
M.2: 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110) |
| Expansion Slots | Default: 2 PCIe 5.0 x16 FHHL slots
2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option A: 2 PCIe 5.0 x16 FHHL slots
1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option B: 2 PCIe 5.0 x16 FHHL slots
1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible) |
| On-Board Devices | SATA: SATA (6Gbps); RAID 0/1/5/10 support
NVMe: NVMe; RAID 0/1/5/10 support (Intel® VROC RAID key required)
Chipset: Intel® C741
Network Connectivity: Via AIOM |
| Input / Output | LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 2 USB 3.2 Gen1 Type-A ports (rear)
2 USB 2.0 Type-A ports (front)
Video: 1 VGA port
Serial: 1 COM port (Rear)
TPM: 1 TPM header |
| System Cooling | Fans: 6 middle cooling PWM 40x40x56mm Fan(s)
Air Shroud: 1 Air Shroud |
| Power Supply | 2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies |
