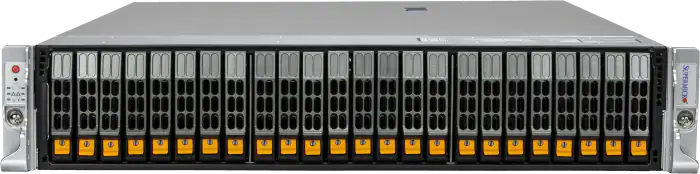

| Form Factor | 2U Rackmount Enclosure: 437 x 88.9 x 760mm (17.2" x 3.5" x 29.9")
Package: 605 x 263 x 1107mm (23.8" x 10.4" x 43.6") |
| Processor | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
Up to 64C/128T
Up to 320MB Cache per CPU |
| GPU | Max GPU Count: Up to 2 double-width or 3 single-width GPUs
Supported GPU: NVIDIA PCIe: RTX A2000, L40S, A100 |
| System Memory | Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM |
| Drive Bays Configuration | Default: Total 24 bays
24 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
M.2: 2 M.2 NVMe/SATA slots (M-key 2280/22110) |
| Expansion Slots | PCI-Express (PCIe) Configuration:
Option A: 4 PCIe 5.0 x16 (in x16) FH/10.5"L double-width slots
2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option B: 8 PCIe 5.0 x8 (in x16) FH/10.5"L slots
2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
M.2: 2 M.2 NVMe/SATA slots (B+M-key 2280/22110) |
| On-Board Devices | SATA: SATA (6Gbps); RAID 0/1/5/10 support
NVMe: NVMe; RAID 0/1/5/10 support (Intel® VROC RAID key required)
Chipset: Intel® C741
Network Connectivity: Via AIOM |
| Input / Output | LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 2 USB 2.0 ports (rear)
2 USB 3.0 ports (Header)
Video: 1 VGA port |
| System Cooling | Fans: 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud: 2 Air Shrouds
Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional) |
| Power Supply | 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies |
