| Form Factor | 4U Rackmount Enclosure: 449 x 174 x 895.35mm (17.6" x 6.85" x 35.25")
Package: 1280 x 410 x 730mm (50.39" x 16.14" x 28.7") |
| Processor | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Up to 64C/128T
Up to 320MB Cache per CPU |
| GPU | Max GPU Count: 8 onboard GPUs
Supported GPU: NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB)
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect: NVIDIA® NVLink® with NVSwitch™ |
| System Memory | Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM |
| Drive Bays Configuration | Default: Total 8 bays
8 front hot-swap 2.5" NVMe drive bays
M.2: 2 M.2 NVMe slots (M-key) |
| Expansion Slots | Default: 8 PCIe 5.0 x16 LP slots
2 PCIe 5.0 x16 FHHL slots
Option A: 8 PCIe 4.0 x16 LP slots
4 PCIe 5.0 x16 FHHL slots |
| On-Board Devices | Chipset: Intel® C741
Network Connectivity: 2 RJ45 10GbE with Intel® X710-AT2 |
| Input / Output | 1 VGA port |
| System Cooling | Fans: 4 Fan 8cm Fan(s)

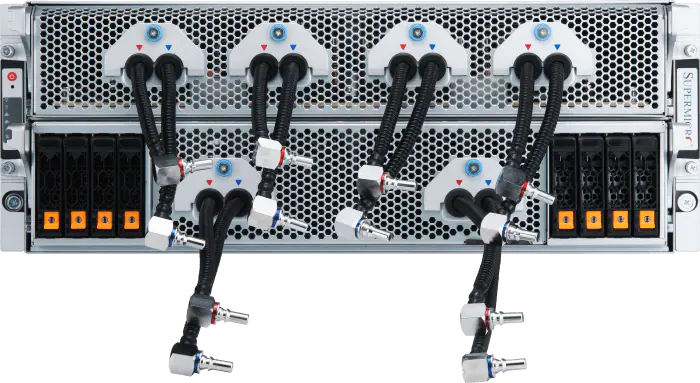

Liquid Cooling: Direct to Chip (D2C) Cold Plate |
| Power Supply | 4x 6600W Redundant (2 + 2) Titanium Level (96%) power supplies |
| System BIOS | BIOS Type: AMI 32MB SPI Flash EEPROM |
| Management | SuperCloud Composer®; Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro ThinAgent Service (TAS); SuperServer Automation Assistant (SAA) |
| PC Health Monitoring | CPU: Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator
FAN: Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Dimensions and Weight | Weight: Gross Weight: 227 lbs (103 kg)
Net Weight: 191 lbs (87 kg)
Available Color: Silver |
| Operating Environment | Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Motherboard | Super X13DEG-M |
| Chassis | CSE-GP403TS-R000NFP |
