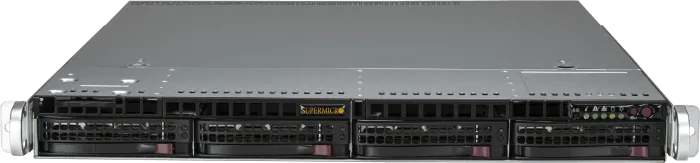

| Form Factor | 1U Enclosure: 437 x 43 x 650mm (17.2" x 1.7" x 25.6")
Package: 597 x 216 x 856mm (23.5" x 8.5" x 33.7") |
| Processor | Single Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Up to 52C/104T
Up to 300MB Cache |
| GPU | Max GPU Count: Up to 1 double-width or 2 single-width GPUs
Supported GPU: NVIDIA PCIe: L4, A2, A10
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect |
| System Memory | Slot Count: 8 DIMM slots/8 Channels
Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM |
| Drive Bays Configuration | Default: Total 4 bays
4 front hot-swap 3.5" SAS*/SATA drive bays
M.2: 1 M.2 PCIe 3.0 x2 NVMe slot (M-key 2280/22110)
Peripheral Bays: 2 2.5" peripheral bays (optional) |
| Expansion Slots | Default: 2 PCIe 5.0 x16 FHFL slots
1 PCIe 5.0 x8 (in x16) LP slot |
| On-Board Devices | SATA: SATA (6Gbps); RAID 0/1/5/10 support
Chipset: Intel® C741
Network Connectivity: 2 RJ45 1GbE with Intel® I210 |
| Input / Output | LAN: 2 RJ45 1 GbE LAN ports
1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB: 2 USB 3.2 Gen1 Type-A ports (rear)
2 USB 2.0 Type-A ports (rear)
1 USB 2.0 Type-A port (Header)
2 USB 3.2 Gen1 ports (Header)
Video: 1 VGA port
Serial: 1 COM port (Rear)
1 COM port (Header)
TPM: 1 TPM header |
| System Cooling | Fans: 5 middle cooling PWM 40x40x56mm Fan(s)
1 AOC cooling Fan(s) (optional)
Air Shroud: 1 Air Shroud |
| Power Supply | 2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies |
| System BIOS | BIOS Type: AMI 32MB SPI Flash EEPROM |
|
| Management | SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
| PC Health Monitoring | CPU: Monitors for CPU Cores, Chipset Voltages, Memory 8 Phase-switching voltage regulator
FAN: Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Dimensions and Weight | Weight: Gross Weight: 34.5 lbs (15.46 kg)
Net Weight: 21.5 lbs (9.75 kg)
Available Color: Black |
| Operating Environment | Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity: 8% to 80% (non-condensing)
Non-operating Relative Humidity: 8% to 90% (non-condensing) |
| Motherboard | Super X13SEW-F |
| Chassis | CSE-815BTS-R000WNP |
