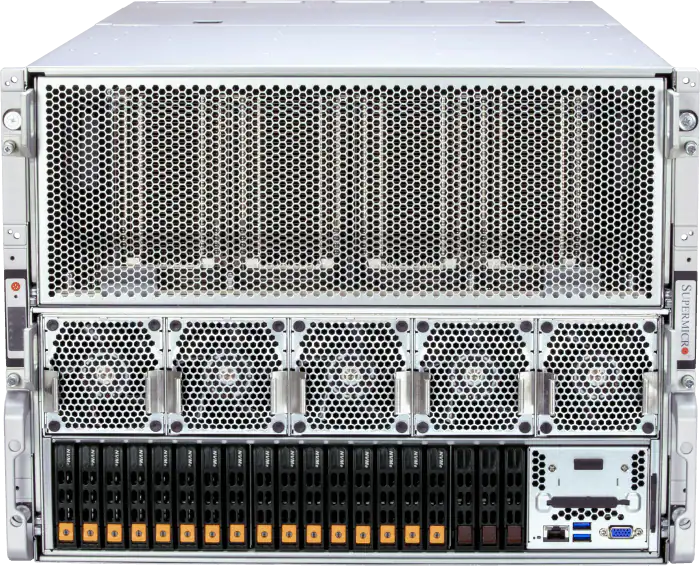

| Form Factor | 8U Rackmount Enclosure: 437 x 355.6 x 843.28mm (17.2" x 14" x 33.2")
Package: 698 x 750 x 1300mm (27.5" x 29.5" x 51.2") |
| Processor | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Up to 64C/128T
Up to 320MB Cache per CPU |
| GPU | Max GPU Count: 8 onboard GPUs
Supported GPU: NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB)
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect: NVIDIA® NVLink® with NVSwitch™ |
| System Memory | Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM |
| Drive Bays Configuration | Default: Total 15 bays
12 front hot-swap 2.5" NVMe drive bays
3 front hot-swap 2.5" SATA drive bays
Option A: Total 19 bays
12 front hot-swap 2.5" NVMe drive bays
4 front hot-swap 2.5" NVMe* drive bays
3 front hot-swap 2.5" SATA drive bays
(*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2: 2 M.2 NVMe slots (M-key) |
| Expansion Slots | Default 8 PCIe 5.0 x16 LP slots
2 PCIe 5.0 x16 FHHL slots
Option A: 2 PCIe 5.0 x16 FHHL slots |
| On-Board Devices | Chipset: Intel® C741
Network Connectivity: 2 RJ45 10GbE with Intel® X550-AT2 (optional)
2 SFP28 25GbE with Broadcom® BCM57414 (optional)
2 RJ45 10GbE with Intel® X710-AT2 (optional) |
| Input / Output | 1 VGA port |
| System Cooling | Fans: 10 heavy duty fans with optimal fan speed control |
| Power Supply | 6x 3000W Redundant (3 + 3) Titanium Level (96%) power supplies |
| System BIOS | BIOS Type: AMI 32MB SPI Flash EEPROM |
| Management | SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) |
| PC Health Monitoring | CPU: Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator
FAN: Fans with tachometer monitoring
Status monitor |
| Form Factor | 8U Rackmount Enclosure: 437 x 355.6 x 843.28mm (17.2" x 14" x 33.2")
Package: 698 x 750 x 1300mm (27.5" x 29.5" x 51.2") |
| Processor | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Up to 64C/128T
Up to 320MB Cache per CPU |
| GPU | Max GPU Count: 8 onboard GPUs
Supported GPU: NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB)
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect: NVIDIA® NVLink® with NVSwitch™ |
| System Memory | Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM |
| Drive Bays Configuration | Default: Total 15 bays
12 front hot-swap 2.5" NVMe drive bays
3 front hot-swap 2.5" SATA drive bays
Option A: Total 19 bays
12 front hot-swap 2.5" NVMe drive bays
4 front hot-swap 2.5" NVMe* drive bays
3 front hot-swap 2.5" SATA drive bays
(*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2: 2 M.2 NVMe slots (M-key) |
| Expansion Slots | Default 8 PCIe 5.0 x16 LP slots
2 PCIe 5.0 x16 FHHL slots
Option A: 2 PCIe 5.0 x16 FHHL slots |
| On-Board Devices | Chipset: Intel® C741
Network Connectivity: 2 RJ45 10GbE with Intel® X550-AT2 (optional)
2 SFP28 25GbE with Broadcom® BCM57414 (optional)
2 RJ45 10GbE with Intel® X710-AT2 (optional) |
| Input / Output | 1 VGA port |
| System Cooling | Fans: 10 heavy duty fans with optimal fan speed control |
| Power Supply | 6x 3000W Redundant (3 + 3) Titanium Level (96%) power supplies |
| System BIOS | BIOS Type: AMI 32MB SPI Flash EEPROM |
| Management | SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) |
| PC Health Monitoring | CPU: Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator
FAN: Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM |
