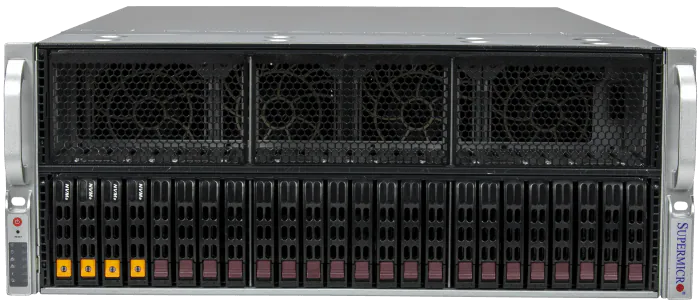

| Model | AS -4125GS-TNRT |
| Form Factor | 4U Rackmount |
| Dimensions | Enclosure: 437 x 178 x 737mm (17.2" x 7" x 29")
Package: 685 x 675 x 1041mm (27" x 26.57" x 41") |
| Processors | Dual AMD EPYC™ 9004/9005 Series Processors
(* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Up to 160C/320T, Up to 512MB Cache per CPU |
| GPU Support | Max GPU Count: Up to 8 Double-Width GPUs
Supported GPUs:
NVIDIA PCIe: H100 NVL, H100, RTX 4000 SFF Ada Generation, L40, RTX A5500, RTX A4000, RTX 6000, RTX 5000, L40S, A40, A30, A100
AMD PCIe: Instinct™ MI210
CPU-GPU Interconnect: Direct Attached
GPU-GPU Interconnect: NVIDIA® NVLink® Bridge (optional), AMD Infinity Fabric™ Link (optional) |
| System Memory | Slot Count: 24 DIMM Slots
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Max Memory (1DPC): Up to 9.2TB 5200MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) |
| Drive Bays | Default: Total 6 Bays
2 Front Hot-Swap 2.5" SATA Drive Bays
4 Front Hot-Swap 2.5" NVMe Drive Bays
1 M.2 PCIe 3.0 x4 NVMe Slot (M-key) |
| Expansion Slots | 9 PCIe 5.0 x16 FHFL Slots |
| On-Board Devices | SATA: SATA 6Gbps
Chipset: AMD SP5
Network Connectivity: 2 RJ45 10GbE Ports |
| Input/Output | LAN: 1 RJ45 1GbE Dedicated BMC LAN Port, 2 RJ45 10 GBASE-T LAN Ports
USB: 2 Ports (Rear)
Video: 1 VGA Port
Serial: 1 COM Port (Rear) |
| Cooling | 8 Heavy Duty Fans with Optimal Fan Speed Control |
| Power Supply | 4x 2000W Redundant Titanium Level (96%) |
| System BIOS | AMI 32MB SPI Flash EEPROM |
| Management | SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) |
| PC Health Monitoring | CPU: Monitors for CPU Cores, Chipset Voltages, Memory, 7 +1 Phase-Switching Voltage Regulator
Fans: Tachometer Monitoring, Speed Control, PWM Fan Connectors
Temperature: Monitoring for CPU and Chassis Environment, Thermal Control for Fan Connectors |
| Chassis | CSE-418G2TS |
