| Main Specifications |
| Device Type | DP AMD 8U System with NVIDIA HGX H100/H200 8-GPU | |
| Built-in Devices | Super H13DSG-O-CPU-D | |

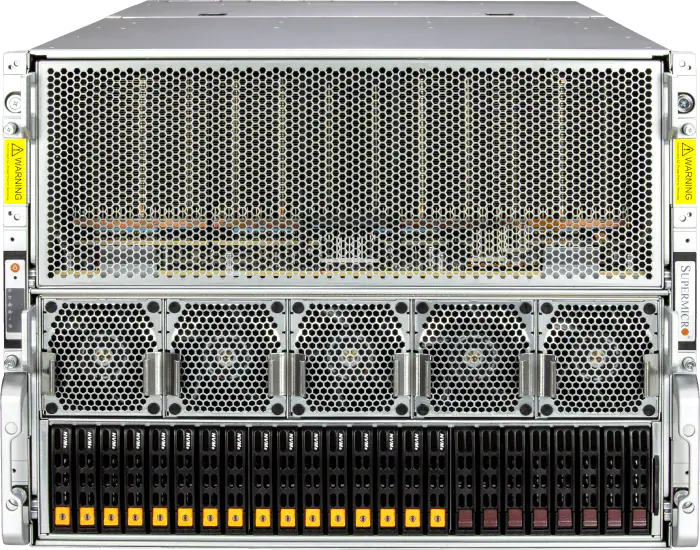

| Form Factor | 8U Rackmount - CSE-GP801TS | |
| Dimensions (WxDxH) | Height 14" (355.6 mm) Width 17.2" (437 mm) Depth 33.2" (843.28 mm) | |
| Weight | Gross Weight: 225 lbs (102.1 kg)
Net Weight: 166 lbs (75.3 kg) | |
| GPU |
| Max GPU Count | Up to 8 onboard GPUs | |

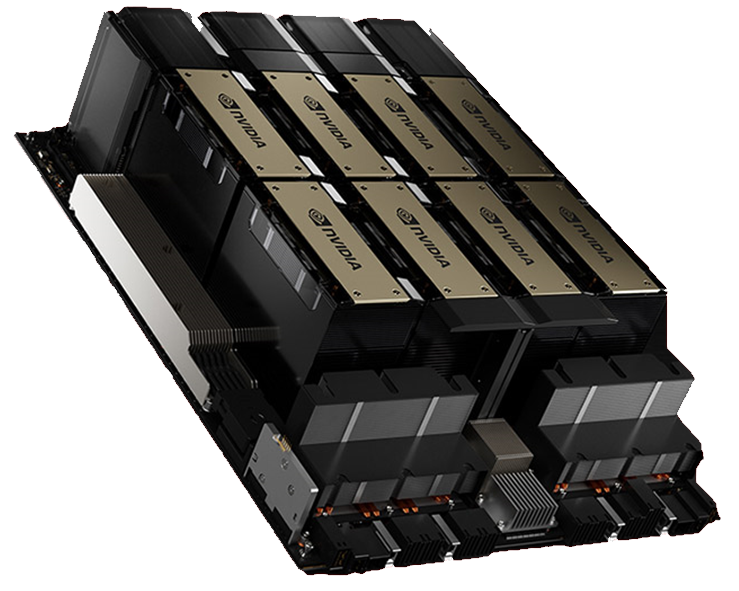

| Supported GPU | NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB) | |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect | |
| GPU-GPU Interconnect | NVIDIA® NVLink® with NVSwitch™ | |
| Processor |
| Processor Installed | Dual AMD EPYC™ 9474F (48C/3.6GHz) | |
| System Memory |
| Memory Installed | 2.3TB DDR5-5600 | |
| Drive Bays |
| Hard Drive Installed | 1x 1.9TB U.2 NVMe SSD | |
| On-Board Devices |
| Network Connectivity | 8x 400G NDR/ETH OSFP | |
| SATA/SAS | Asmedia ASM1061 controller for 2 SATA3 (6 Gbps) ports | |
| NVMe | NVMe, RAID 0/1/5/10 support (Intel VROC RAID key required) | |
| Chipset | AMD SP5 | |
| Input / Output |
| USB(s) | 1 USB 2.0 port(s) (1 via header) | |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Power |
| AC Input Voltage | 3000W: 0240Vdc / 50-60Hz (for CQC only)
2880W: 200-207Vac / 50-60Hz
3000W: 207-240Vac / 50-60Hz
3000W: | |
| Power Supply Installed | 6x 3000W Redundant Titanium Level (96%) power supplies | |
| Environment |
| Operating Temperature | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | |
| Relative Humidity | Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) | |
| | | |
