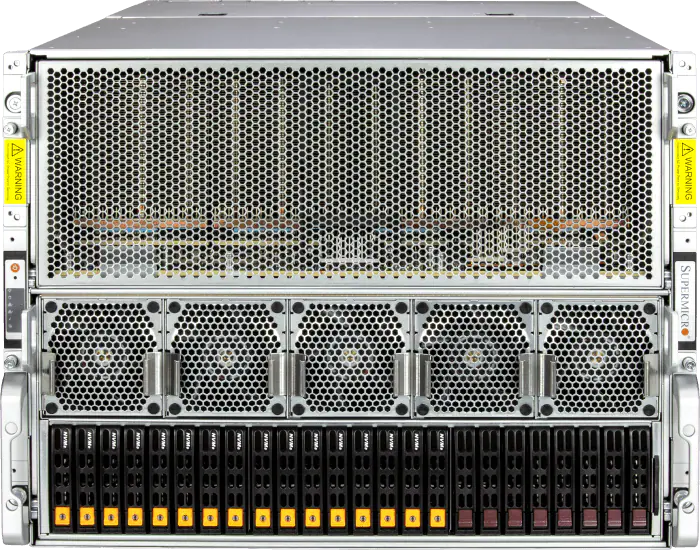

| Form Factor | 8U Rackmount
Enclosure: 437 x 355.6 x 843.28mm (17.2" x 14" x 33.2")
Package: 698 x 750 x 1300mm (27.5" x 29.5" x 51.2") |
| Processor | Dual processor(s) AMD EPYC™ 9004/9005 Series Processors (* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x) |
| GPU | Max GPU Count: 8 onboard GPUs

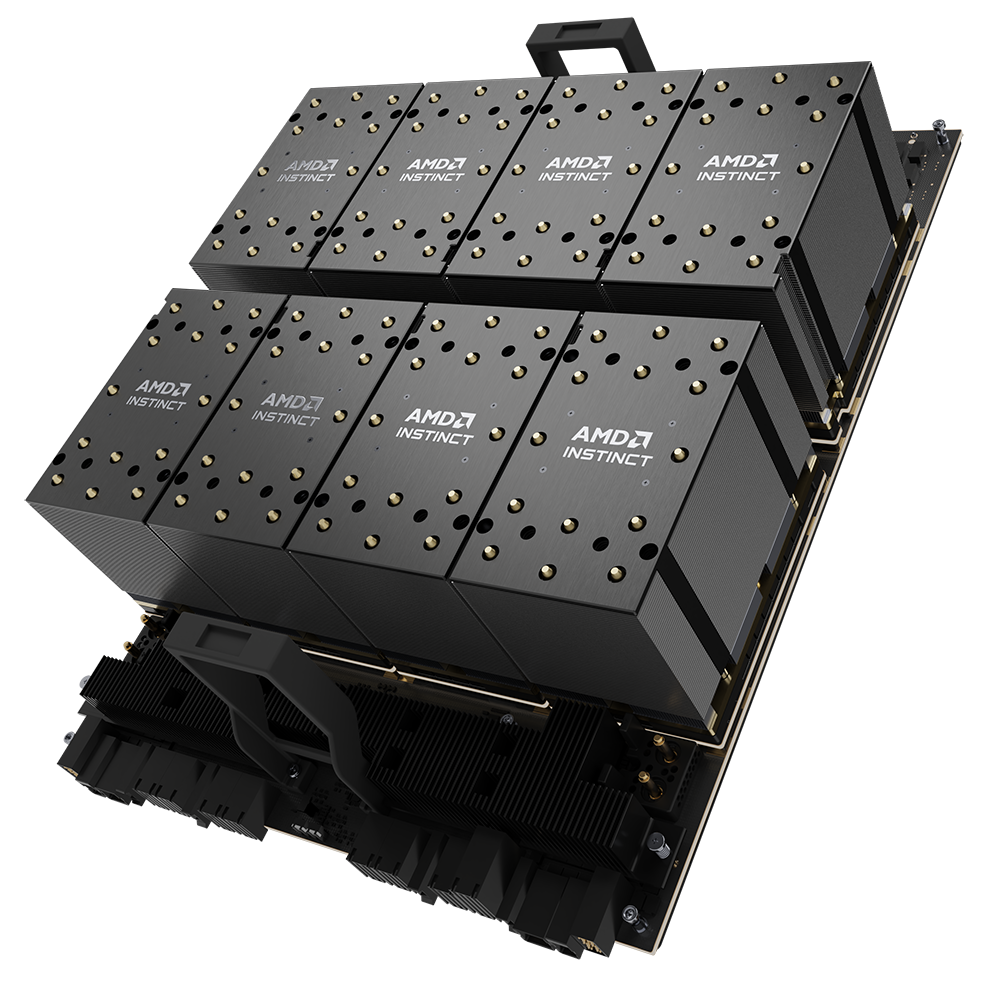

Supported GPU: AMD: Instinct™ MI300X Accelerators
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect: AMD Infinity Fabric™ Link |
| System Memory | Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM |
| Drive Bays | Default: Total 18 bays
12 front hot-swap 2.5" NVMe drive bays
2 front hot-swap 2.5" SATA drive bays
4 front hot-swap 2.5" NVMe* drive bays
(*NVMe support may require additional storage controller and/or cables)
M.2: 2 M.2 NVMe slots (M-key) |
| Expansion Slots | Default: 8 PCIe 5.0 x16 LP slots
2 PCIe 5.0 x16 FHFL slots
Option A: 8 PCIe 5.0 x16 LP slots
4 PCIe 5.0 x16 FHFL slots |
| On-Board Devices | AMD SP5 |
| Input / Output | 1 VGA port |
| System Cooling | 10 heavy duty fans with optimal fan speed control |
| Power Supply | 6x 3000W redundant Titanium level power supplies |
| System BIOS | AMI 32MB SPI Flash EEPROM |
| Management | SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) |
