| Form Factor | 2U Rackmount
Enclosure: (17.2" x 3.5" x 34")
Package: (29" x 12" x 52") |
| Processor | Single processor(s) AMD EPYC™ 9004/9005 Series Processors (* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Up to 84C/168T; Up to 384MB Cache |
| System Memory | Slot Count: 12 DIMM slots
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Max Memory (1DPC): Up to 4.5TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) |

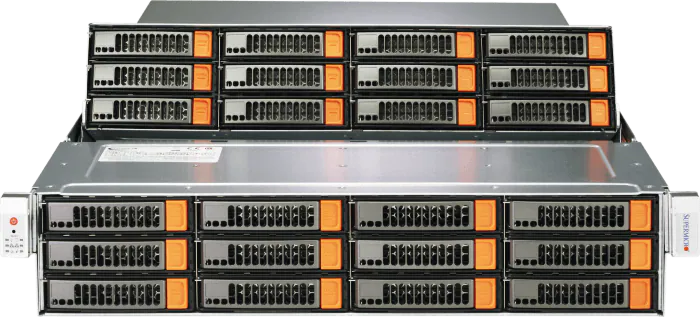

| Drive Bays | Default: Total 26 bays
12 front hot-swap 3.5" SAS/SATA drive bays
12 top-loading hot-swap 3.5" SAS/SATA drive bays
2 rear hot-swap 2.5" SATA drive bays
Option A: Total 28 bays
12 front hot-swap 3.5" SAS/SATA drive bays
12 top-loading fixed 3.5" SAS/SATA drive bays
2 rear hot-swap 2.5" SATA drive bays
2 rear hot-swap 2.5" NVMe drive bays
Option B: Total 30 bays
12 front hot-swap 3.5" SAS/SATA drive bays
12 top-loading hot-swap 3.5" SAS/SATA drive bays
4 rear hot-swap 2.5" NVMe drive bays
2 rear hot-swap 2.5" SATA drive bays
M.2: 2 M.2 NVMe slots (M-key 2280/22110) |
| Expansion Slots | Default: 4 PCIe 5.0 x16 FHHL slots
2 PCIe 5.0 x8 FHHL slots
2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option A: 3 PCIe 5.0 x16 FHHL slots
1 PCIe 5.0 x8 FHHL slot
2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option B: 2 PCIe 5.0 x16 FHHL slots
2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) |
| On-Board Devices | Chipset: System on Chip |
| Input / Output | LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 2 USB 3.0 ports (rear)
Video: 1 VGA port |
| System Cooling | Fans: 4 Heavy Duty 8cm Fan(s)
Air Shroud: 1 Air Shroud |
| Power Supply | 1x 1600W Redundant Titanium Level (96%) power supply |
| System BIOS | BIOS Type: AMI 32MB SPI Flash EEPROM |
| Management | SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro |
