| Form Factor | 2U Rackmount
Enclosure: (17.2" x 3.5" x 34")
Package: (29" x 12" x 52") |
| Processor | Single Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Up to 36C/72T; Up to 180MB Cache |
| System Memory | Slot Count: 16 DIMM slots
Max Memory (2DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM |

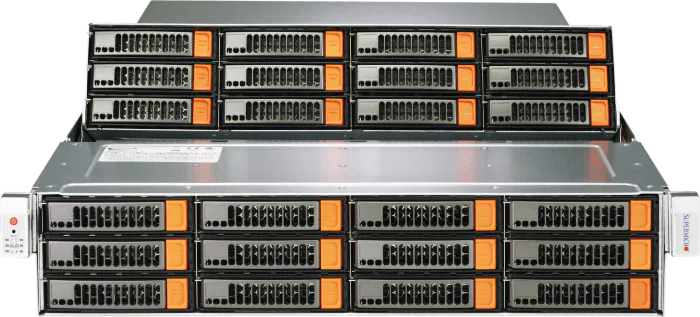

| Drive Bays | Default: Total 26 bays
12 front hot-swap 3.5" SAS/SATA drive bays
12 top-loading hot-swap 3.5" SAS/SATA drive bays
2 rear hot-swap 2.5" SATA drive bays
Option A: Total 28 bays
12 front hot-swap 3.5" SAS/SATA drive bays
12 top-loading hot-swap 3.5" SAS/SATA drive bays
2 rear hot-swap 2.5" SATA drive bays
2 rear hot-swap 2.5" NVMe drive bays
Option B: Total 30 bays
12 front hot-swap 3.5" SAS/SATA drive bays
12 top-loading hot-swap 3.5" SAS/SATA drive bays
4 rear hot-swap 2.5" NVMe drive bays
2 rear hot-swap 2.5" SATA drive bays
M.2: 2 M.2 NVMe/SATA slots (M-key 2280/22110) |
| Expansion Slots | Default: 4 PCIe 5.0 x8 FHHL slots
2 PCIe 5.0 x16 FHHL slots
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option A: 2 PCIe 5.0 x8 FHHL slots
2 PCIe 5.0 x16 FHHL slots
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option B: 2 PCIe 5.0 x16 FHHL slots
2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) |
| On-Board Devices | Chipset: Intel® C741
Network Connectivity: Via AIOM |
| Input / Output | LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 2 USB 3.0 ports (rear)
Video: 1 VGA port
DOM: 2 Super DOM (Disk on Module) ports |
| System Cooling | Fans: 4 Heavy Duty 8cm Fan(s)
Air Shroud: 1 Air Shroud |
| Power Supply | 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies |
| System BIOS | BIOS Type: AMI 32MB SPI Flash EEPROM |
| Management | SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super |
