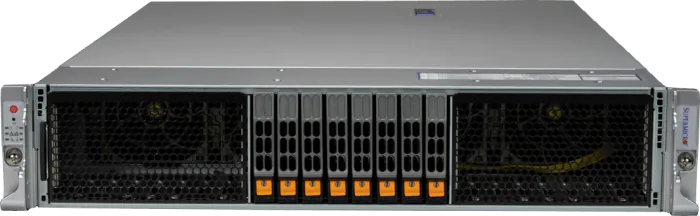

SYS-221H-TNR-G1

SuperServer Gold Series version with pre-configured components

  • CPU: Dual Intel® Xeon® 8562Y+ (32C/2.8GHz)
  • GPU: 2 NVIDIA L40S
  • Memory: 1TB DDR5-5600
  • Storage: 2x 960GB M.2 NVMe SSD
  • Networking: 1 dual 10GbE RJ45
  • Power Supply: 2x 2000W Titanium Level



Key ApplicationsVirtualization, Software-defined Storage, AI Inference and Machine Learning, Cloud Computing, Enterprise Server
Key FeaturesDual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors; 32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-5600; Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots with support for up to 4 double-width or 8 x8 single-width GPU/Accelerator cards; Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible); 8x 2.5" hot-swap NVMe/SATA/SAS drive bays; Optional 8x 2.5" hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe/SATA drive slots; Optional RAID support via storage add-on card; 4 heavy duty hot-swap fans with optimal fan speed control







Form Factor2U Rackmount Enclosure: 437 x 88.9 x 760mm (17.2" x 3.5" x 29.9")
Package: 605 x 263 x 1107mm (23.8" x 10.4" x 43.6")
ProcessorDual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
Up to 64C/128T
Up to 320MB Cache per CPU
GPUMax GPU Count: Up to 4 double-width or 8 single-width GPUs
Supported GPU: NVIDIA PCIe: H100 NVL, H100, L40, RTX A6000, RTX A4000, L40S, L4, A40, A16, A100
System MemorySlot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
Drive Bays ConfigurationDefault: Total 8 bays
8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
Option A: Total 16 bays
16 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
M.2: 2 M.2 NVMe/SATA slots (M-key 2280/22110)
Expansion SlotsPCI-Express (PCIe) Configuration:
Option A: 4 PCIe 5.0 x16 FH/10.5"L double-width slots
2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option B: 8 PCIe 5.0 x8 (in x16) FH/10.5"L slots
2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
CXL Support: Up to 4 CXL 1.1 x16/x8 devices
M.2: 2 M.2 NVMe/SATA slots (B+M-key 2280/22110)
On-Board DevicesSATA: SATA (6Gbps); RAID 0/1/5/10 support
NVMe: NVMe; RAID 0/1/5/10 support (Intel® VROC RAID key required)
Chipset: Intel® C741
Network Connectivity: Via AIOM
Input / OutputLAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 2 USB 2.0 ports (rear)
2 USB 3.0 ports (Header)
Video: 1 VGA port
System CoolingFans: 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud: 2 Air Shrouds
Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional)
Power Supply2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies
System BIOSBIOS Type: AMI 64MB SPI Flash
ManagementSuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA)
PC Health MonitoringCPU: Monitors for CPU Cores, Chipset Voltages, Memory
FAN: Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment, Thermal Control for fan connectors
Dimensions and WeightWeight: Gross Weight: 66 lbs (30 kg)
Net Weight: 40 lbs (18.2 kg)
Available Color: N/A
Operating EnvironmentOperating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
MotherboardSuper X13DEM
ChassisCSE-HS219-R1K24P
$35,104.00
