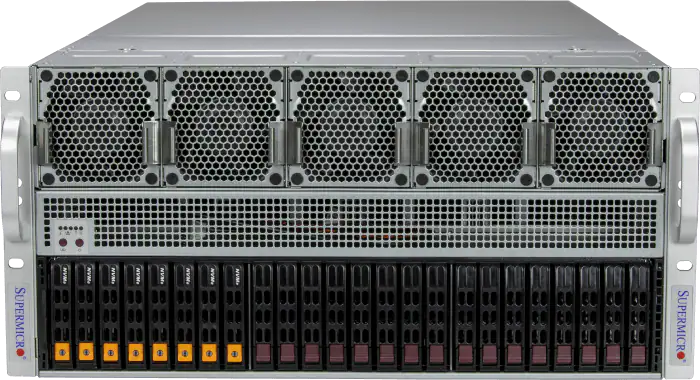

| Form Factor | 5U Rackmount Enclosure: 437 x 222.5 x 737mm (17.2" x 8.75" x 29")
Package: 720 x 440 x 1080mm (28.34" x 17.32" x 42.51") |
| Processor | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Up to 64C/128T
Up to 320MB Cache per CPU |
| GPU | Max GPU Count: Up to 10 double-width or 10 single-width GPUs
Supported GPU: NVIDIA PCIe: H100 NVL, H200 NVL (141GB), RTX 6000 Ada Generation, L40S, L4
CPU-GPU Interconnect: PCIe 5.0 x16 Switch
Dual-Root GPU-GPU Interconnect: NVIDIA® NVLink® Bridge (optional) |
| System Memory | Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM |
| Drive Bays Configuration | Default: Total 16 bays
8 front hot-swap 2.5" NVMe drive bays
8 front hot-swap 2.5" SATA drive bays
Option A: Total 24 bays
8 front hot-swap 2.5" NVMe drive bays
8 front hot-swap 2.5" NVMe* drive bays
8 front hot-swap 2.5" SATA drive bays
(*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2: 2 M.2 NVMe slots (M-key) |
| Expansion Slots | Default 13 PCIe 5.0 x16 FHFL slots |
| On-Board Devices | Chipset: Intel® C741
Network Connectivity: 2 RJ45 10GbE with Intel® X710-AT2 |
| Input / Output | 1 VGA port |
| System Cooling | Fans: 10 heavy duty fans with optimal fan speed control
Air Shroud: 1 Air Shroud
Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional) |
| Power Supply | 4x 2700W Redundant Titanium Level (96%) power supplies |
| System BIOS | BIOS Type: AMI 32MB SPI Flash EEPROM |
| Management | SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) |
| PC Health Monitoring | CPU: Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator
FAN: Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors |
|
