| Main Specifications |

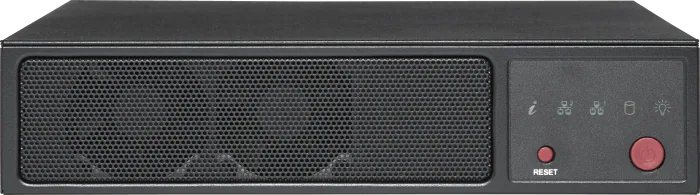

| Device Type | Embedded Mini-ITX Box Based on 8-Core Intel Atom Processor C5000 SoC | |
| Built-in Devices | Super A3SPI-8C-LN6PF | |
| Form Factor | Mini-ITX-CSE-101F | |
| Dimensions (WxDxH) | Height 1.69" (43 mm)Width 7.68" (195 mm)Depth 8.89" (225.8 mm) | |
| Weight | Gross Weight: 7.5 lbs (3.4 kg) Net Weight: 2.76 lbs (1.25 kg) | |
| Processor |
| Processor Installed | Single Intel® Atom® C5325 (8C/2.4GHz) | |
| System Memory |
| Memory Installed | 32GB DDR4-3200 | |
| Drive Bays |
| Hard Drive Installed | 1x 960GB M.2 NVMe Solid-state Drive (SSD) | |
| On-Board Devices |
| Network Connectivity | Onboard Dual 10GbE SFP+
Onboard Quad 1GbE RJ45 | |
| SATA/SAS | SoC controller for 1 SATA3 (6 Gbps) ports | |
| Chipset | System on Chip | |
| Input / Output |
| USB(s) | 2 USB 2.0 port(s) (2 via header)
2 USB 3.0 port(s) (2 rear) | |
| Video Output | 1 VGA port | |
| System BIOS |
| BIOS Type | AMI 32MB UEFI | |
| Power |
| AC Input Voltage | 150W: 100-240Vac / 47-63Hz | |
| Power Supply Installed | 1x 150W power supply | |
| Environment |
| Operating Temperature | Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Relative Humidity | Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing) | |
| | | |
