| Main Specifications |

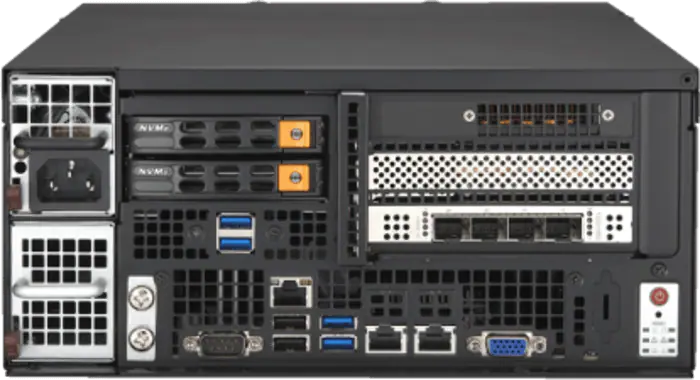

| Device Type | X13 2.5U Box PC with Intel 5th / 4th Gen Intel Xeon Scalable processor and support for 3 PCIe 5.0 x16 (FHFL) slots and 2 10GbE LAN | |
| Built-in Devices | Super X13SEW-TF | |
| Form Factor | Fan-based Embedded-CSE-E403BiF-000NDBP2 | |
| Dimensions (WxDxH) | Height 4.62" (117.348 mm) Width 10.5" (266.7 mm) Depth 16" (406.4 mm) | |
| Weight | Gross Weight: 24.5 lbs (10.95 kg) Net Weight: 18.5 lbs (8.16 kg) | |
| GPU |
| Max GPU Count | Up to 1 double-width or 2 single-width GPUs | |
| Supported GPU | NVIDIA PCIe: L40, RTX 6000 Ada Generation, L4, A2 | |
| Processor |
| Processor Installed | Single Intel® Xeon® 4510 (12C/2.4GHz) | |
| System Memory |
| Memory Installed | 128GB DDR5-5600 | |
| Drive Bays |
| Hard Drive Installed | 1x 480GB M.2 NVMe SSD | |
| On-Board Devices |
| Network Connectivity | Onboard dual 10GbE RJ45 | |
| SATA/SAS | Intel® C741 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| NVMe | NVMe; RAID 0/1 support(Intel® VROC RAID key required) | |
| Chipset | Intel C741 | |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GbE LAN ports (Intel® X550-AT2) | |
| USB(s) | 5 USB 2.0 port(s) (2 via header; 2 rear; 1 Type A)
4 USB 3.2 Gen1 port(s) (2 via header; 2 rear) | |
| Video Output | 1 VGA D-Sub Connector port(s) | |
| System BIOS |
| BIOS Type | AMI UEFI | |
| Power |
| AC Input Voltage | 100-127Vac
750W: 100-127Vac / 50-60Hz
200-240Vac
800W: 200-240Vac / 50-60Hz
230-240Vdc
800W: 230-240Vdc / 50-60Hz | |
| Power Supply Installed | 1x 800W Redundant Platinum Level (94%) power supply | |
| Environment |
| Operating Temperature | Operating Temperature: 0°C ~ 45°C (32°F ~ 113°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Relative Humidity | Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing) | |
| | | |
