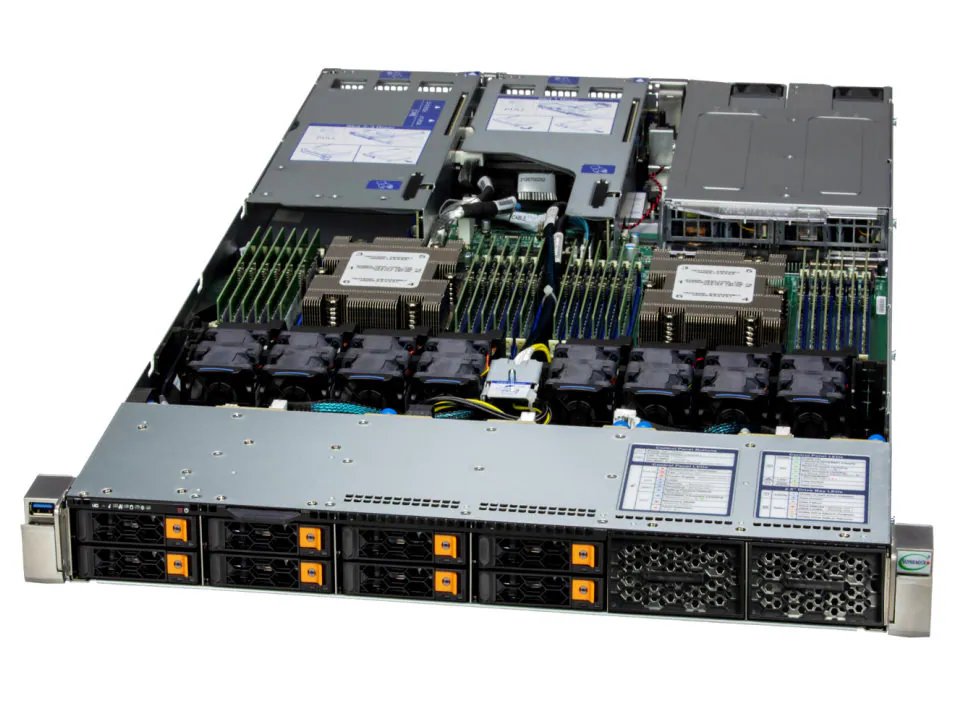

| Form Factor | 1U Enclosure: 437 x 43 x 747mm (17.2" x 1.7" x 29.4")
Package: 605 x 206 x 1032mm (23.8" x 8.1" x 40.6") |
| Processor | Dual processor(s) AMD EPYC™ 9004/9005 Series Processors (* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Up to 320C/640T |
| System Memory | Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Max Memory (1DPC): Up to 9TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) |

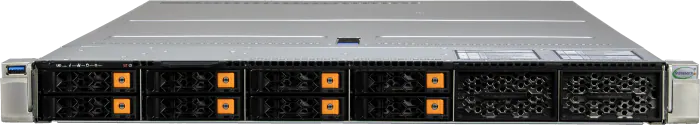

| Drive Bays Configuration | Default: Total 8 bays
8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
Option A: Total 12 bays
12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2: 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110) |
| Expansion Slots | Default 1 PCIe 5.0 x16 FHHL slot
2 PCIe 5.0 x16 FHFL slots
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| On-Board Devices | Chipset: System on Chip
Network Connectivity: Via AIOM |
| Input / Output | LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 2 USB 3.0 ports(rear)
1 USB 3.0 port(front)
Video: 1 VGA port |
| System Cooling | Fans: 8 counter-rotating 40x40x56mm Fan(s)
Air Shroud: 2 Air Shrouds |
| Power Supply | 2x 1200W Redundant Titanium Level (96%) power supplies |
| System BIOS | BIOS Type: AMI 32MB SPI Flash EEPROM
BIOS Features: ACPI 6.4
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support |
| Management | SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
OOB Management Package (SFT-OOB-LIC )
SuperServer Automation Assistant (SAA) |
| PC Health Monitoring | FAN: Fans with tachometer |
