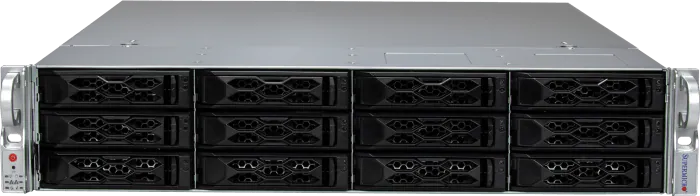

| Form Factor | 2U Rackmount Enclosure: 437 x 89 x 648mm (17.2" x 3.5" x 25.5")
Package: 679 x 296 x 876mm (26.7" x 11.4" x 34.5") |
| Processor | Single Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Up to 64C/128T
Up to 320MB Cache |
| GPU | Max GPU Count: Up to 2 double-width or 4 single-width GPUs
Supported GPU: NVIDIA PCIe: H100, L40, T1000, RTX A6000, RTX A4000, RTX A2000, L40S, L4, A40, A30, A16, A2
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect |
| System Memory | Slot Count: 16 DIMM slots/8 Channels
Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM |
| Drive Bays Configuration | Default: Total 12 bays
12 front hot-swap 3.5" SAS*/SATA drive bays
Option A: Total 12 bays
2 front hot-swap 3.5" PCIe 5.0 x4 NVMe*/SAS*/SATA drive bays
10 front hot-swap 3.5" SAS*/SATA drive bays
M.2: 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110) |
| Expansion Slots | Default: 4 PCIe 5.0 x8 FHFL slots
2 PCIe 5.0 x16 FHHL slots
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option A: 4 PCIe 5.0 x8 FHFL slots
2 PCIe 5.0 x16 FHHL slots
1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
Option B: 2 PCIe 5.0 x16 FHFL double-width slots
2 PCIe 5.0 x16 FHHL slots
1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible) |
| On-Board Devices | SATA: SATA (6Gbps); RAID 0/1/5/10 support
NVMe: NVMe; RAID 0/1/5/10 support (Intel® VROC RAID key required)
Chipset: Intel® C741
Network Connectivity: Via AIOM |
| Input / Output | LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 2 USB 2.0 ports (header)
2 USB 3.2 Gen1 Type-A ports (rear)
Video: 1 VGA port
Serial: 1 COM port (Rear)
TPM: 1 TPM header |
| System Cooling | Fans: 3 heavy duty PWM 80x80x38mm Fan(s)
Air Shroud: 1 Air Shroud |
| Power Supply | 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies |
| System BIOS | BIOS Type: AMI 32MB SPI Flash EEPROM |
| Management | SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
| PC Health Monitoring | CPU: Monitors for CPU Cores, Chipset Voltages, Memory 8 Phase-switching voltage regulator
FAN: Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Dimensions and Weight | Weight: Gross Weight: 59 lbs (26.76 kg)
Net Weight: 33 lbs (15 kg)
Available Color: Black front & silver body |
| Operating Environment | Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity: 8% to 80% (non-condensing)
Non-operating Relative Humidity: 8% to 90% (non-condensing) |
| Motherboard | Super X13SEDW-F |
| Chassis | CSE-LA26TS-R1K23AWP1 |
