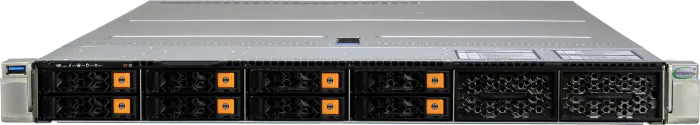

| Form Factor | 1U Rackmount Enclosure: 437 x 43 x 747mm (17.2" x 1.7" x 29.4")
Package: 605 x 206 x 1032mm (23.8" x 8.1" x 40.6") |
| Processor | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
Up to 64C/128T
Up to 320MB Cache per CPU |
| GPU | Max GPU Count: Up to 1 double-width or 3 single-width GPUs
Supported GPU: NVIDIA PCIe: H100 NVL, H100, RTX A5000, RTX A4000, L40S, L4 |
| System Memory | Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM |
| Drive Bays Configuration | Default: Total 8 bays
8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
Option A: Total 12 bays
12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
M.2: 2 M.2 NVMe/SATA slots (M-key 2280/22110) |
| Expansion Slots | PCI-Express (PCIe) Configuration: Default
1 PCIe 5.0 x16 FHHL slot
2 PCIe 5.0 x16 FH/10.5"L slots
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
M.2: 2 M.2 NVMe/SATA slots (B+M-key 2280/22110) |
| On-Board Devices | SATA: SATA (6Gbps); RAID 0/1/5/10 support
NVMe: NVMe; RAID 0/1/5/10 support (Intel® VROC RAID key required)
Chipset: Intel® C741
Network Connectivity: Via AIOM |
| Input / Output | LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 2 USB 2.0 ports (rear)
1 USB 3.0 port (front)
Video: 1 VGA port |
| System Cooling | Fans: 8 counter-rotating 40x40x56mm Fan(s)
Air Shroud: 2 Air Shrouds
Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional) |
| Power Supply | 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies |
