| Form Factor | 2U Rackmount Enclosure: 437 x 89 x 648mm (17.2" x 3.5" x 25.5")
Package: 679 x 296 x 876mm (26.7" x 11.4" x 34.5") |
| Processor | Single processor(s) AMD EPYC™ 9004/9005 Series Processors (* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Up to 160C/320T |
| GPU | Max GPU Count: Up to 2 double-width or 4 single-width GPUs
Supported GPU: NVIDIA PCIe: L40, RTX A4000, RTX 6000 Ada Generation, L40S, L4, A40, A30, A16, A2, A100
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect: PCIe |
| System Memory | Slot Count: 12 DIMM slots
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Max Memory (1DPC): Up to 4.5TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) |

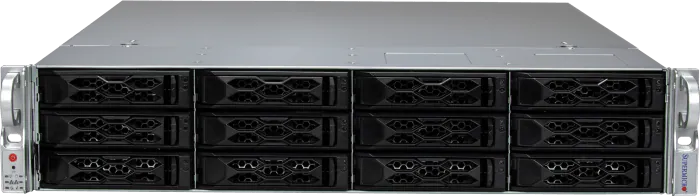

| Drive Bays Configuration | Default: Total 12 bays
12 front hot-swap 3.5"/2.5" SATA drive bays
Option A: Total 4 bays
4 front hot-swap 2.5" PCIe 5.0 NVMe* drive bays
Option B: Total 12 bays
12 front hot-swap 3.5"/2.5" SAS* drive bays
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2: 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110) |
| Expansion Slots | Default: 2 PCIe 5.0 x16 FHFL slots
2 PCIe 5.0 x16 FHHL slots
2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option A*: 2 PCIe 5.0 x8 FHFL slots |
| On-Board Devices | Chipset: System on Chip
Network Connectivity: Via AIOM |
| Input / Output | LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 2 USB 3.0 ports(rear)
Video: 1 VGA port
Serial: 1 COM port(Rear) |
| System Cooling | Fans: 3x 8cm heavy duty fans with optimal fan speed control
Air Shroud: 1 Air Shroud |
| Power Supply | 2x 1200W Redundant Titanium Level (96%) power supplies |
| System BIOS | BIOS Type: AMI 32MB SPI Flash ROM
BIOS Features: ACPI 6.4
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support |
